Preserving the Historic Miami Freedom Tower with Advanced Cathodic Protection Systems

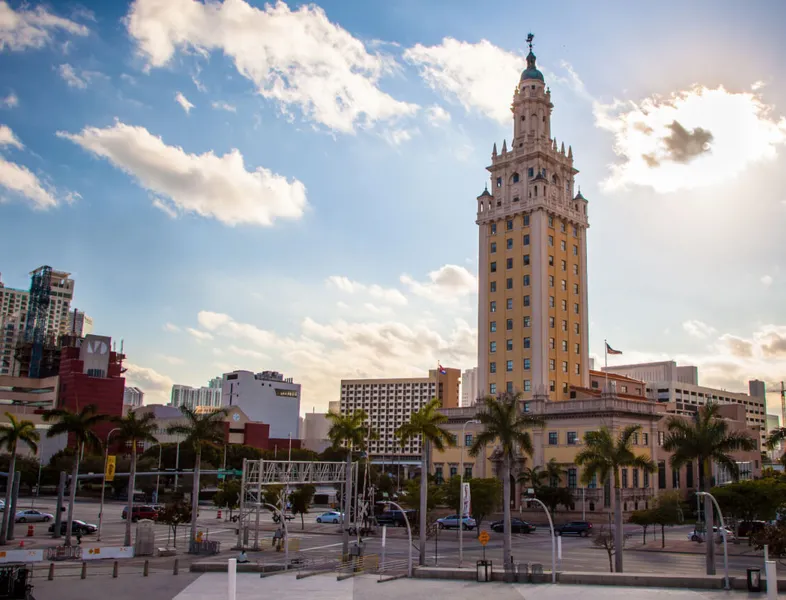

Freedom Tower is one of South Florida's most recognizable and historically significant landmarks. Originally completed in 1925, the building has served as a newspaper headquarters, immigration processing center, and cultural institution, becoming an enduring symbol of Miami's history and heritage.

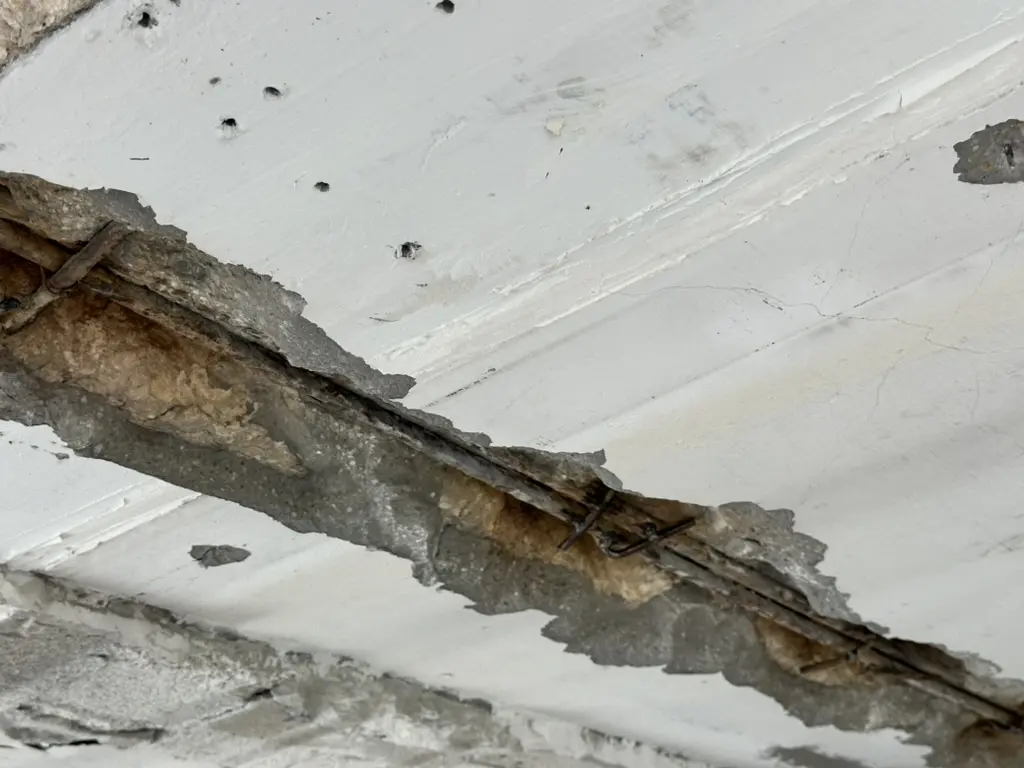

After nearly a century of exposure to South Florida's harsh coastal environment, portions of the reinforced concrete structure began exhibiting signs of corrosion-related deterioration. Chlorides from the marine atmosphere had gradually penetrated the concrete, initiating corrosion of the embedded reinforcing steel and leading to cracking, spalling, and localized concrete damage throughout various areas of the building.
Because of the tower's historic significance, preservation efforts required corrosion mitigation solutions capable of providing long-term protection while minimizing impact to the building's architectural character and historic finishes.
The Challenge
Unlike many structures where a single corrosion protection system can be applied throughout, the Freedom Tower presented a variety of unique conditions. Different areas of the building required specialized approaches based on accessibility, architectural finishes, and structural configuration.
The project team needed corrosion protection systems that could:
- Mitigate active corrosion of embedded reinforcing steel
- Preserve historic architectural features and finishes
- Minimize visual impact to occupied and public spaces
- Accommodate varying structural and environmental conditions throughout the building
- Provide long-term durability for a nationally recognized landmark
The Solution
NoCo was engaged to design and supply multiple cathodic protection technologies tailored to the specific requirements of each area of the structure.

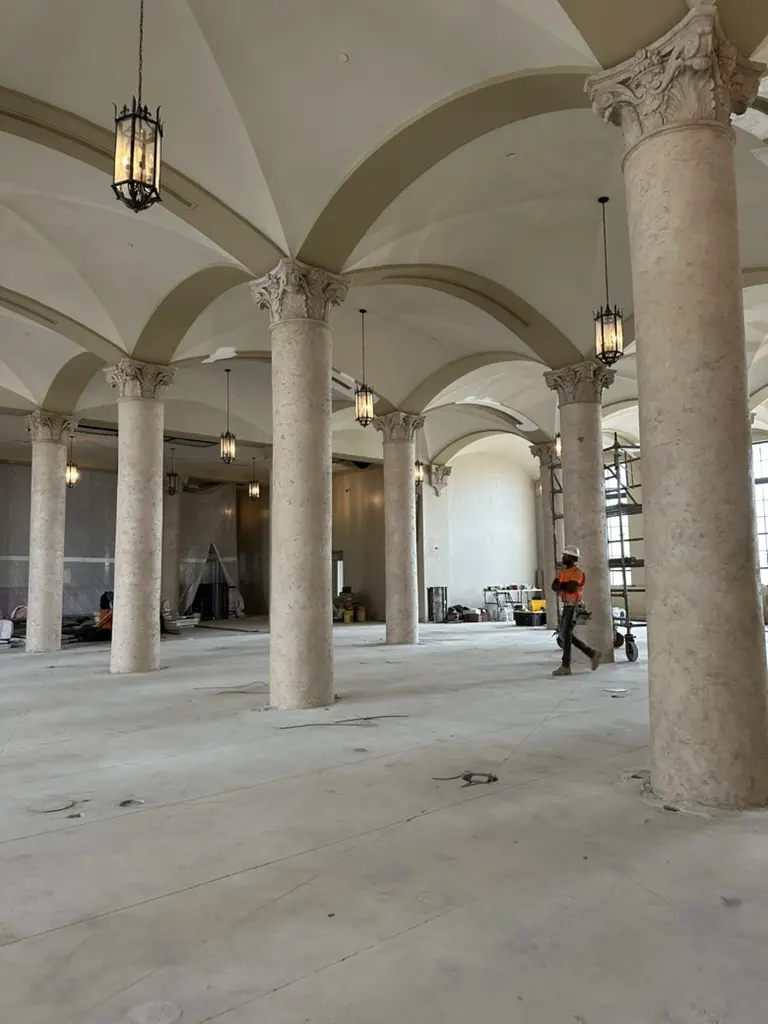

ZEBRA ICCP – Historic Mural Room

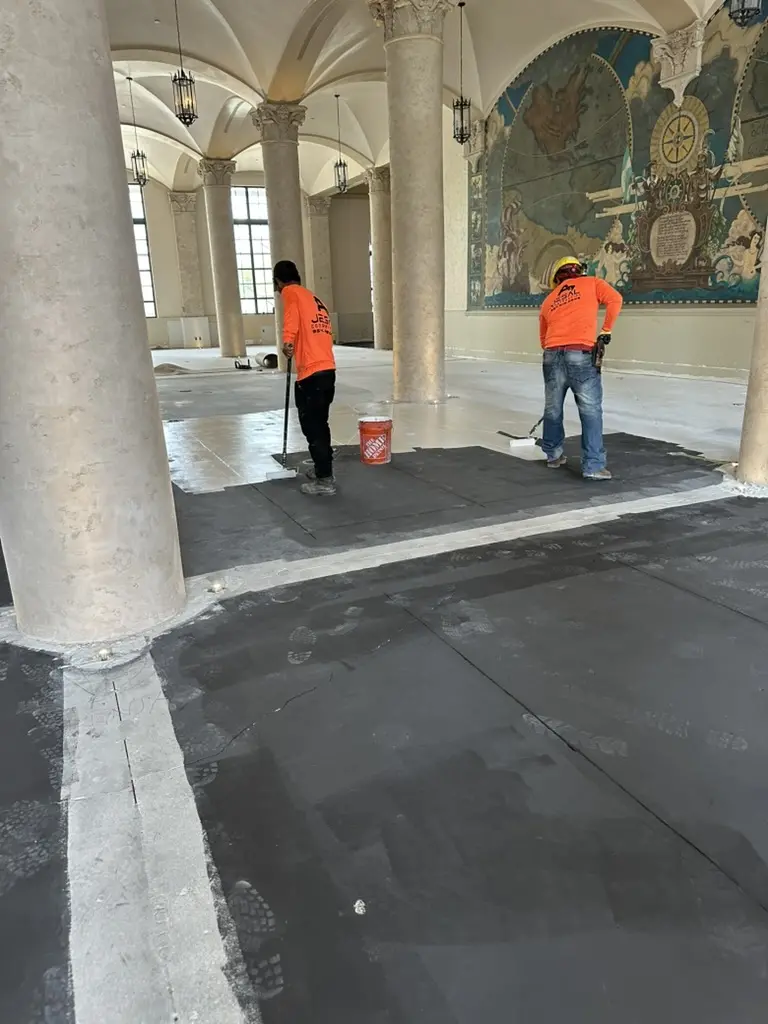

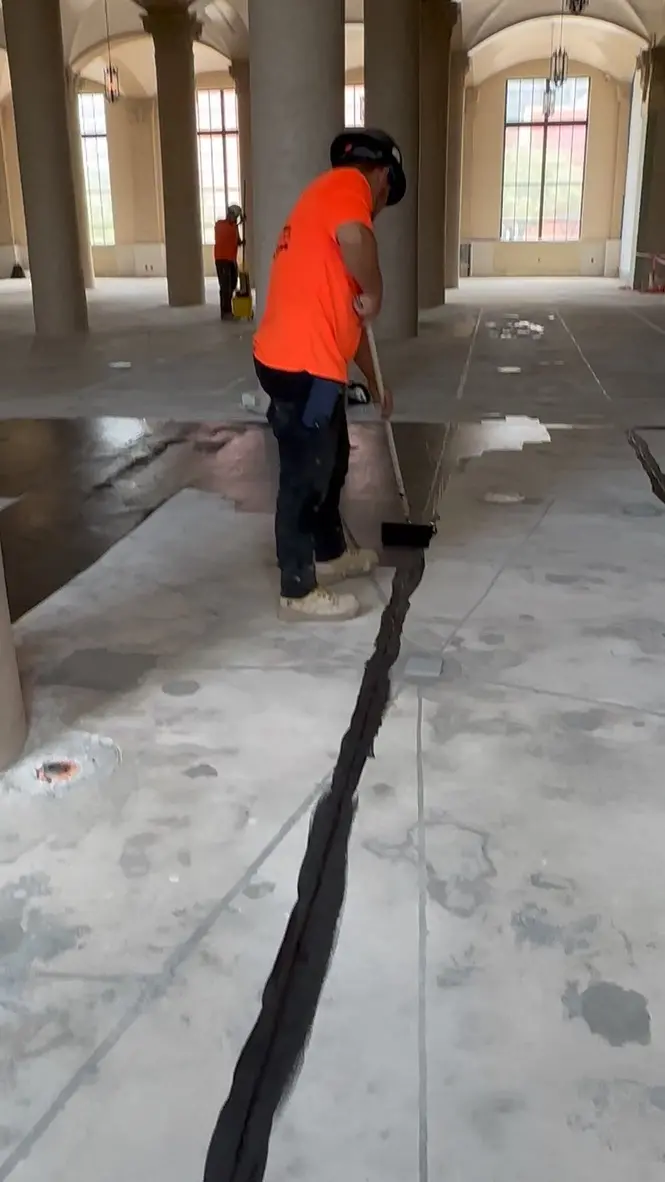

Within the historic mural room, NoCo's ZEBRA Impressed Current Cathodic Protection (ICCP) system was selected. Utilizing a conductive paint anode, ZEBRA provides highly effective corrosion mitigation while maintaining the aesthetic integrity of architecturally sensitive spaces.
The low-profile nature of the system allowed corrosion protection to be incorporated without compromising the historic appearance of the room.

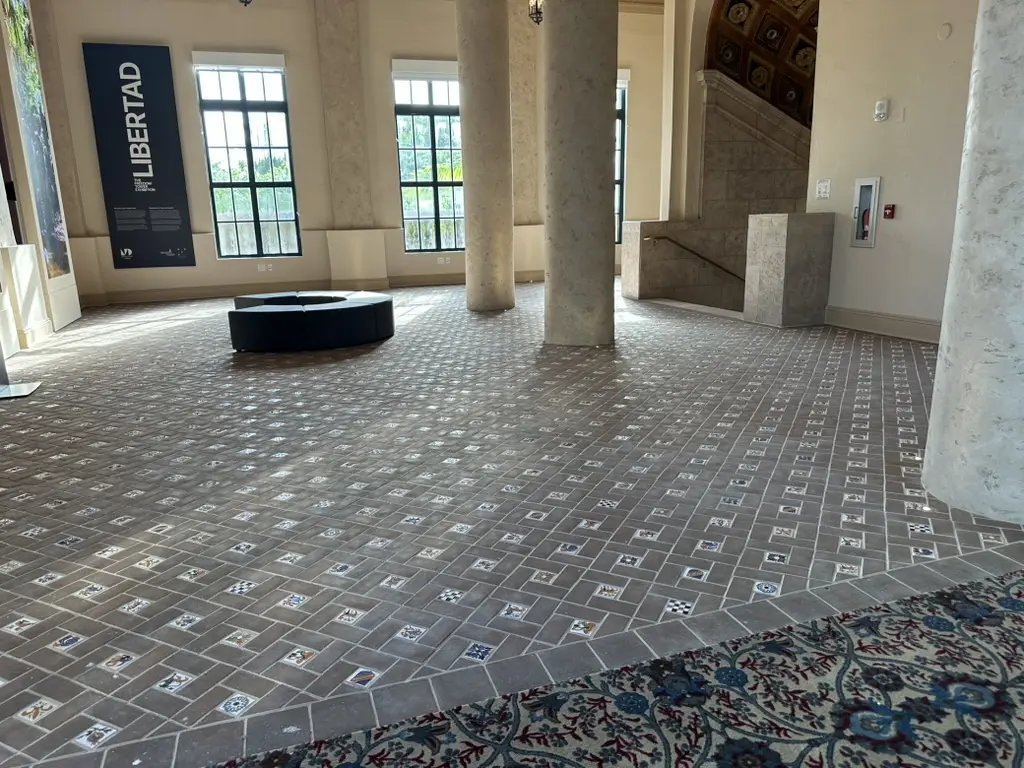

DuoGuard Hybrid Anodes – Tiled Areas

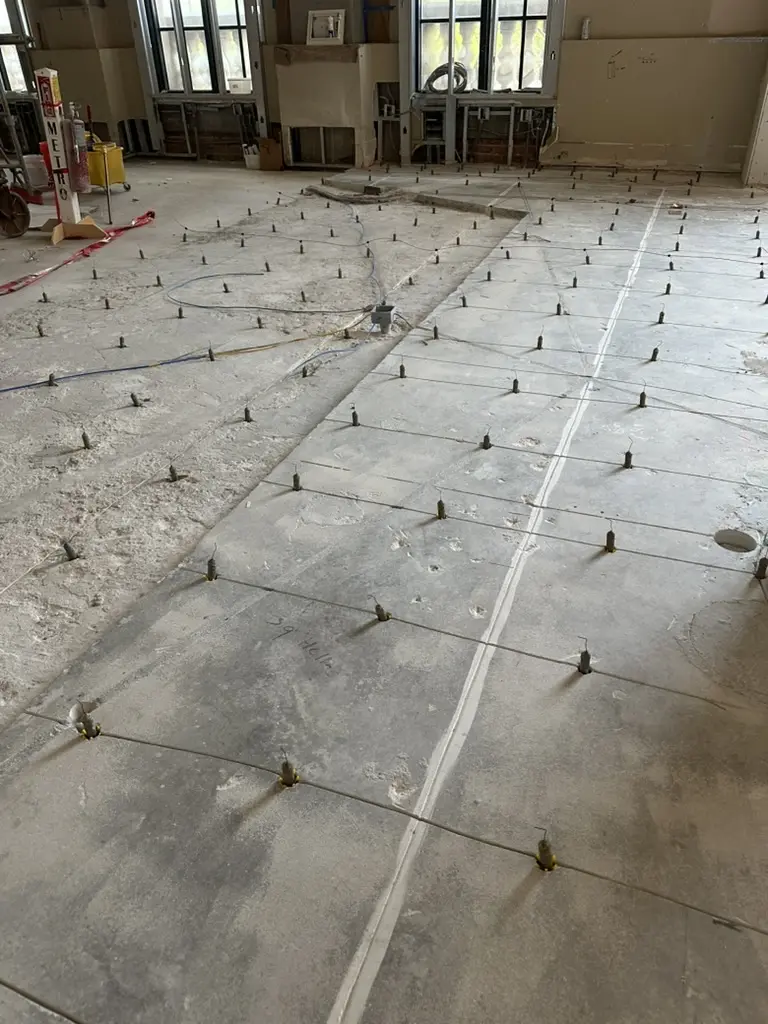

In areas finished with historic tile, DuoGuard Hybrid Anodes were installed to provide corrosion mitigation with minimal disturbance to existing finishes.
The hybrid technology combines an initial impressed current treatment phase with long-term galvanic protection, helping to arrest active corrosion while providing ongoing protection to the reinforcing steel.

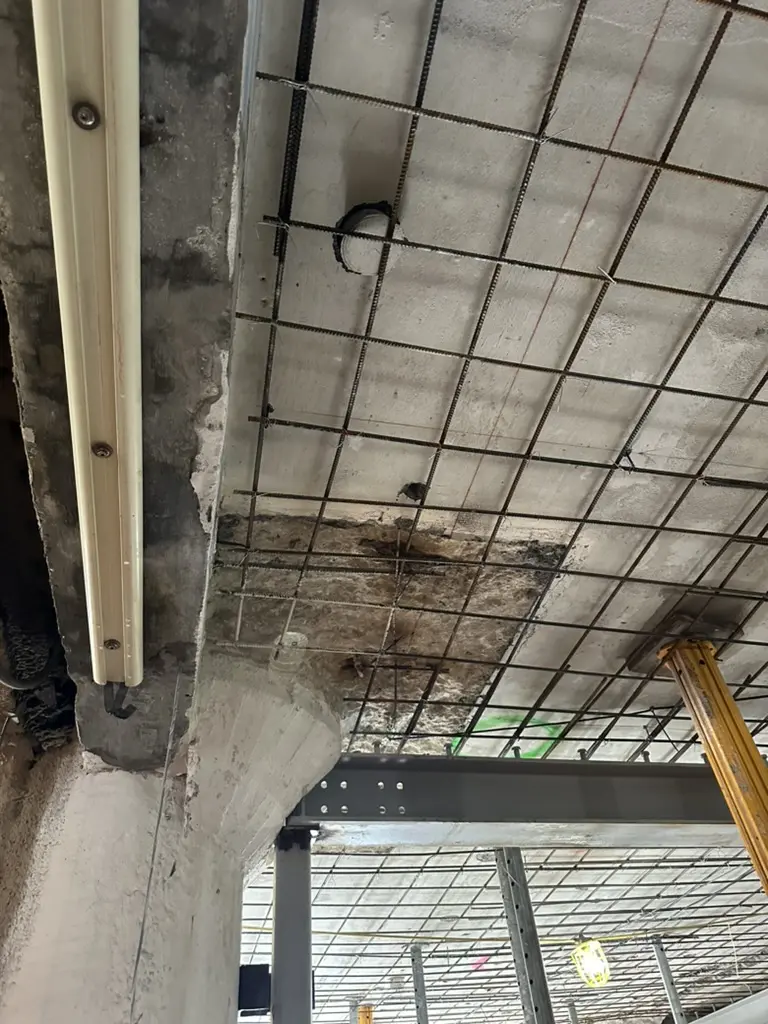

Cassette ICCP – Structural Slab Soffits
For the underside of structural slabs, NoCo's Cassette ICCP system was implemented. The surface-mounted configuration made it ideally suited for overhead applications, providing uniform impressed current protection across larger concrete surfaces while minimizing invasive work to the historic structure.
Results
By utilizing a combination of cathodic protection technologies, the project team was able to tailor the corrosion mitigation strategy to the unique requirements of each area of the building.
The result was a comprehensive corrosion protection program that:
- Mitigates active corrosion of embedded reinforcing steel
- Preserves historic architectural features and finishes
- Minimizes visual impact within sensitive areas
- Extends the service life of the reinforced concrete structure
- Reduces the likelihood of future corrosion-related repairs
Project Impact
The Freedom Tower rehabilitation demonstrates how modern cathodic protection technologies can be successfully integrated into historic preservation projects. By combining ZEBRA ICCP, DuoGuard Hybrid Anodes, and Cassette ICCP systems, NoCo helped protect one of Miami's most iconic landmarks while preserving the architectural and cultural significance that makes the Freedom Tower a treasured part of South Florida's history.
